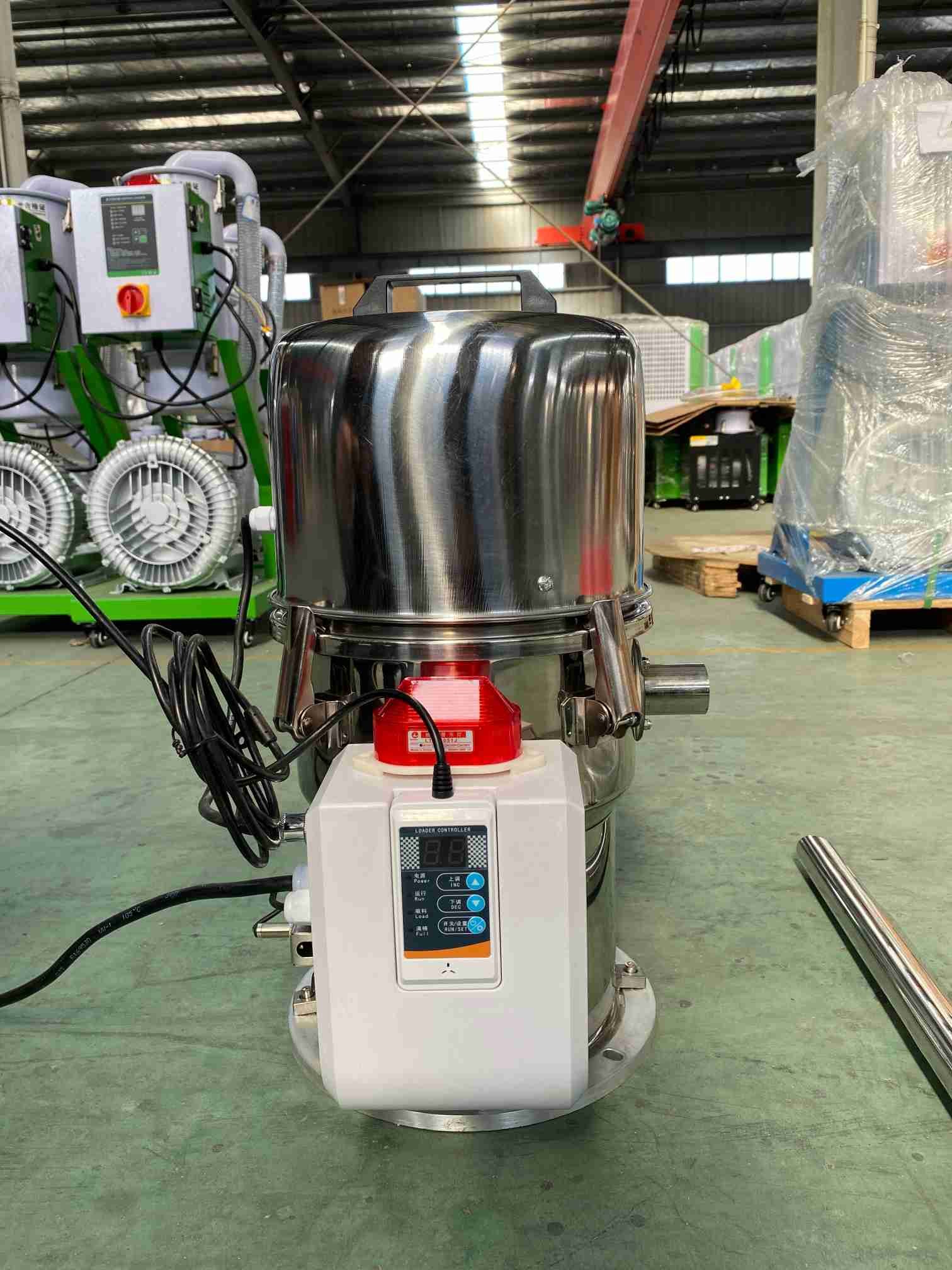

Introduction to European-style hopper loader
The European-style hopper loader is an efficient feeding device widely used in plastic processing and related industries. With its high efficiency, stability and intelligence, it has become the first choice of many manufacturers. The equipment is mainly used to automatically transport raw materials required by various production equipment, significantly improving production efficiency and automation level. European-style hopper loaders are mostly made of stainless steel, which has the characteristics of high strength, hygiene and easy cleaning. In addition, it also provides a variety of capacity specifications to meet the needs of different production scales and equipment for raw material consumption.
Features of European-style hopper loader
1. Efficient and intelligent operation

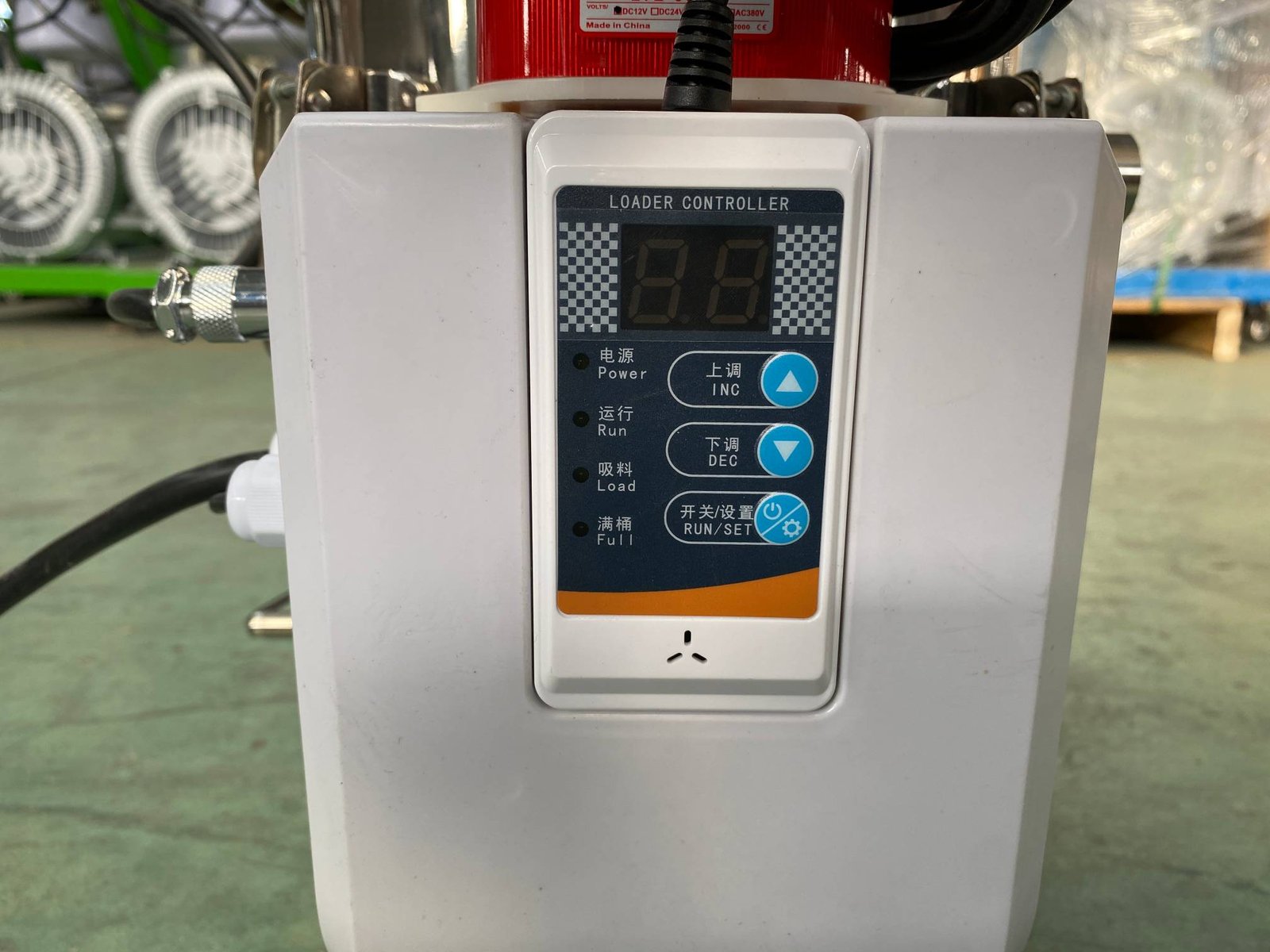

The European-style hopper loader is equipped with a fully automatic computer operating system, which is easy to operate and maintain. Its intelligent design can automatically complete the transportation and supply of raw materials without manual intervention, greatly improving production efficiency.
2. High-quality materials and structure
The main body of the equipment is made of stainless steel, which is not only strong and durable, but also easy to clean and maintain, and meets the requirements of food-grade and pharmaceutical-grade production environments. The hopper and the main machine are separated, which is safe to operate and easy to maintain.
3. Safety and protection functions
The European-style hopper loader is equipped with a motor protection device. When the equipment is overloaded or out of material, it can automatically alarm and promptly remind the operator to take measures to avoid equipment damage and production interruption.
4. Environmental protection and clean design

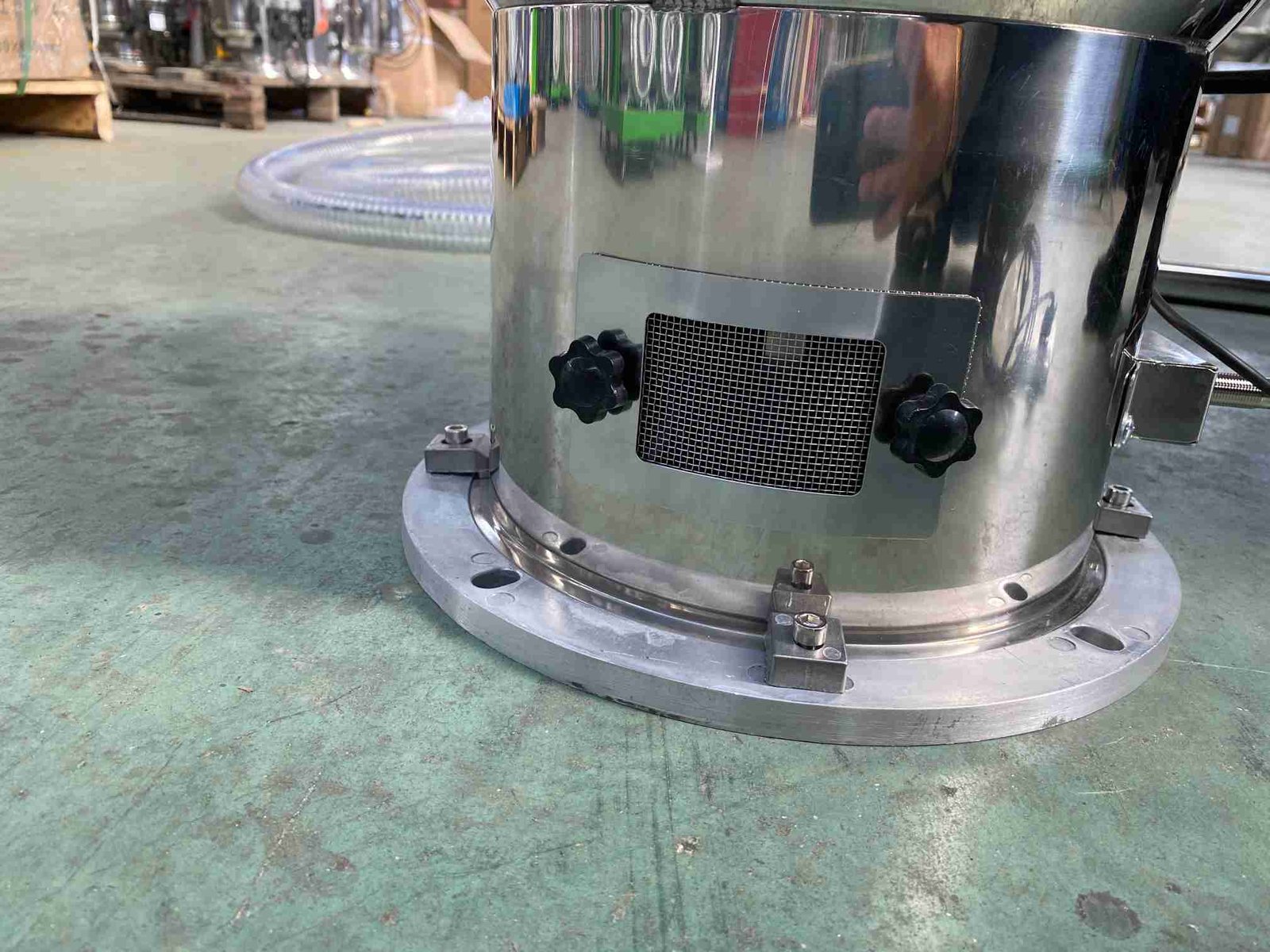

The equipment is equipped with an independent filter device to facilitate the removal of accumulated dust, keep the working environment clean, and reduce the harm of dust to the equipment and the health of operators.
5. Optional functions
For the 700 and 800 specifications of the European hopper loader, a photoelectric eye detector can also be selected and directly installed at the machine feed port to further improve the automation and operation convenience of the equipment.
Technical Parameter
| Model | X300G | X400G | X700 | X800 | X800G2 | X900G | X900G2 | X900G3 | X900G4 | x900G5 | x900G7.5 | X900G10 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Motor | Type | Brushes | Induction | Brushes | Induction | ||||||||||
| Power | Kw | 1.12 | 0.75 | 1.12 | 1.12 | 1.50 | 1.12 | 1.50 | 2.24 | 3 | 3.73 | 5.60 | 7.50 | ||
| Conveying Capacity | Kg/h | 300 | 330 | 310 | 450 | 590 | 450 | 500 | 590 | 590 | 820 | 960 | 1300 | ||
| Lift | m | 3.5 | 4 | 4 | 4 | 5 | 4 | 4 | 5 | 7 | 8 | 9 | 10 | ||
| Capacity | L | 7.5 | 12 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 24 | 51 | 51 | ||
| Pipe Diameter | mm | \ \ \ \ \ Ф38 | \ \ \ \ \ Ф38 | \ \ \ \ \ Ф38 | Ф50 | ||||||||||
| Dimensions | L(mm) | 390 | 450 | 400 | 420 | 500 | 510 | 510 | 540 | 540 | 540 | 580 | 580 | ||
| W(mm) | 390 | 370 | 480 | 460 | 400 | 370 | 370 | 560 | 560 | 620 | 600 | 600 | |||
| H(mm) | 590 | 660 | 700 | 700 | 720 | 670 | 670 | 1230 | 1230 | 1230 | 1600 | 1600 | |||
| Weight | Kg | 12 | 27 | 20 | 57 | 76 | 55 | 58 | 66 | 66 | 89 | 93 | 101 | ||
Advantages of European-style hopper loader
1. Reduce production costs
Through automated feeding, manual intervention is reduced and labor costs are reduced. At the same time, the efficient operation of the equipment reduces the waste of raw materials and further reduces production costs.
2. Improve production efficiency
The European-style hopper loader can achieve a fast and stable supply of raw materials, avoid production interruptions caused by untimely manual feeding, and significantly improve the utilization rate and production efficiency of production equipment.
3. Improve production safety
The equipment’s safety design and automatic alarm function can effectively avoid operational risks and protect the personal safety of operators, while also reducing the potential risks caused by equipment failure.
4. Optimize the production environment
The independent filter device can effectively remove dust, keep the working environment clean, improve employees’ working conditions, and meet the requirements of modern environmentally friendly production.
5. Strong adaptability
The design of multiple capacity specifications enables it to adapt to production needs of different scales. Whether it is a small workshop or a large factory, you can find a suitable model.
Detials
Application Scenarios
European-style hopper feeders are widely used in the following industries and production links:
Plastic processing industry: automatic feeding of raw materials for injection molding machines, extruders and other equipment.
Plastic modification industry: realize automatic conveying of modified plastic particles.
Plastic recycling industry: efficient feeding of recycled plastic particles.
Injection molding production: provide a stable and continuous supply of raw materials for injection molding machines.
Extrusion production: ensure uninterrupted supply of raw materials for extruders.
Blow molding production: meet the feeding requirements of blow molding equipment.
FAQ
Q: Is the maintenance cost of the european-style hopper loader high?
A: The machine is made of high-quality materials, with a simple structure and low maintenance cost. Daily maintenance mainly includes cleaning the filter device, checking the motor protection device, etc., which is easy to operate and can be completed without professional personnel.
Q: What is the degree of automation of the equipment?
A: The European hopper loader is equipped with a fully automatic computer operating system, which can realize the automatic transportation and supply of raw materials without manual intervention and has a high degree of automation.
Q: If the equipment fails, how to solve it?
A: The european-style hopper loader is equipped with an automatic alarm function, which will promptly remind the operator when overload or lack of material occurs. Common faults can be solved by simple maintenance, such as cleaning the filter device or checking the motor protection device. If you encounter complex problems, you can contact our after-sales service team and we will provide professional technical support.
Q: Is the equipment suitable for food grade or pharmaceutical grade production environment?
A: Yes. The european-style hopper loader is made of stainless steel, which meets the requirements of food-grade and pharmaceutical-grade production environments. It is easy to clean and disinfect, ensuring the hygiene and safety of the production process.
Q: Is the installation of the machinery complicated?
A: The installation process of the European-style hopper loader is simple and quick. We provide detailed installation instructions and professional technical support to ensure that the equipment can be put into use quickly.
