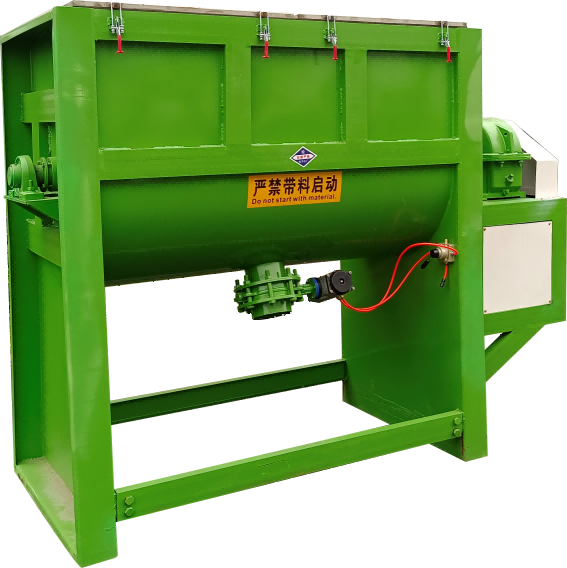

Horizontal plastic mixer

Horizontal Plastic Mixer is a kind of equipment widely used in plastic processing industry, mainly used for stirring and mixing plastic granules, powders and other materials. It consists of mixing barrel, stirring paddle, drive motor and control system, and is suitable for plastic modification, plastic recycling, injection molding, extrusion production, blow molding and other fields.

Introduction to Horizontal Plastic Mixer

Horizontal Plastic Mixer is a kind of equipment widely used in plastic processing industry, mainly used for stirring and mixing plastic granules, powders and other materials. It consists of mixing barrel, stirring paddle, drive motor and control system, and is suitable for plastic modification, plastic recycling, injection molding, extrusion production, blow molding and other fields.

Horizontal plastic mixer has become an indispensable equipment in plastic processing industry with its efficient and stable mixing performance. Whether it is the uniform mixing of plastic granules and masterbatch, or the full mixing of powder and liquid additives, the equipment can easily cope with it and meet different production needs.

Features of Horizontal Plastic Mixer

1. Intelligent function

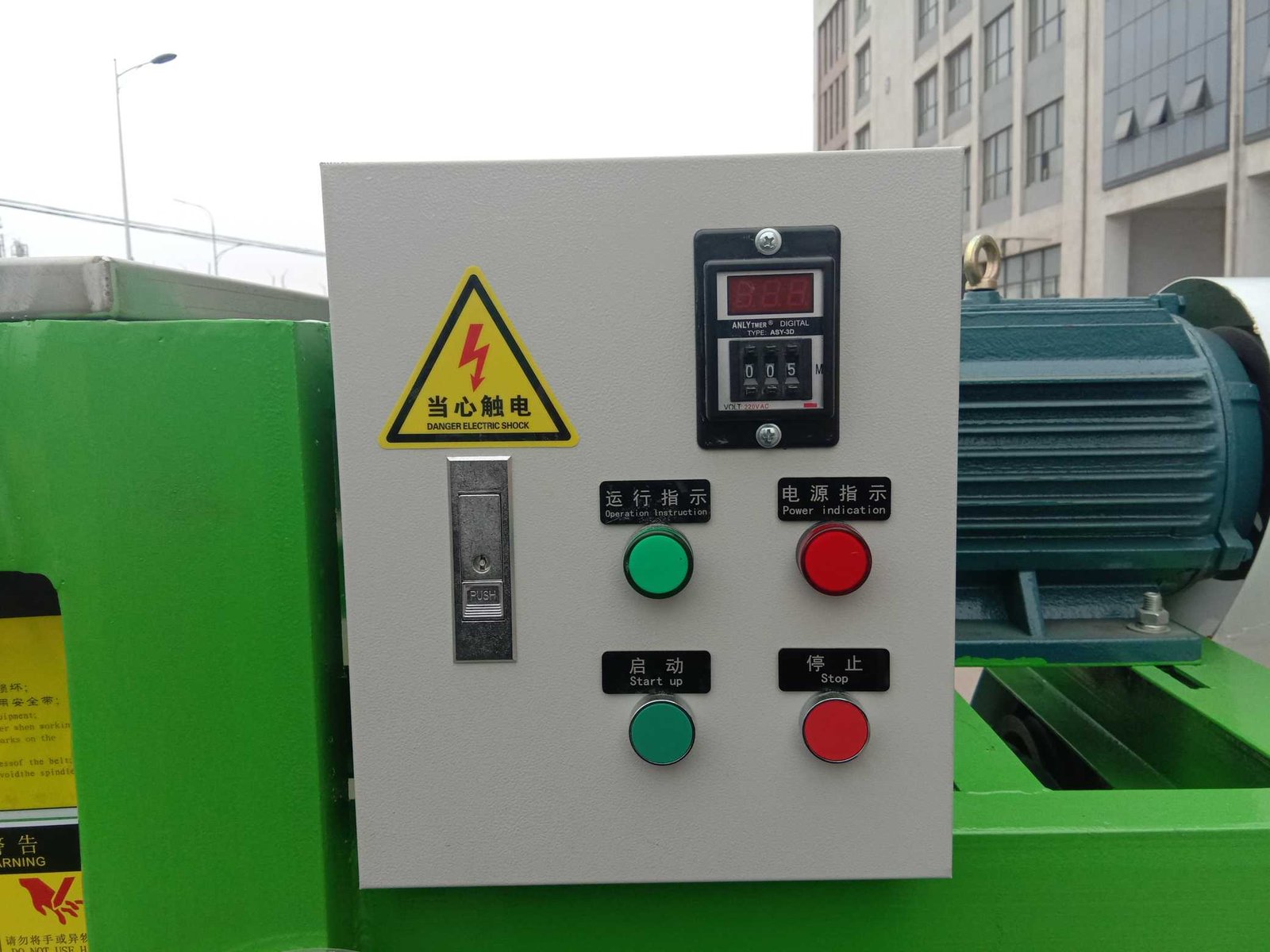

Intelligent control system: equipped with advanced control system, users can adjust parameters such as stirring speed and stirring time according to production needs to achieve precise control.

Automated operation: supports automated batch mixing, reduces manual intervention and improves production efficiency.

2. High-quality materials

Stainless steel mixing barrel: made of high-quality stainless steel, it has excellent corrosion resistance and durability, ensuring long-term stable operation of the equipment.

High-strength stirring paddle: The spiral stirring paddle design ensures that the materials are fully turned over during the mixing process to achieve uniform mixing.

3. Efficient mixing

Double-helix stirring design: The unique double-helix stirring paddle design enables the materials to be mixed left and right and cross-mixed in the mixing barrel to ensure a more uniform mixing effect.

Low-speed stirring: Low-speed operation reduces heat generation and is particularly suitable for mixing heat-sensitive materials.

Technical Parameter

Model		W500KG	W1000KG	W2000KG	W3000KG	W4000KG	W5000KG
Capacity	KG	500	1000	2000	3000	4000	5000
Power	Kw	7.5	11	18.5	30	37	45
Heating Capacity	Kw	18	18	24	40	50	60
Speed	r/min	30	30	25	25	25	25
Spindle	mm	90×15	100×15	120×20	130×25	140×30	140×40
Blades	mm	60×10	80×10	100×12	110×12	120×14	120×14
Countershaft	mm	51	61	76	89	89	89
Dimensions	L(mm)	2400	2800	3500	4000	4300	4500
	W(mm)	1000	1200	1500	1700	1800	1900
	H(mm)	1700	2000	2300	2700	2900	3000
Weight	Kg	800	1000	1800	2600	3000	3500

Benefits of Horizontal Plastic Mixer

1. Reduce production costs

Efficient mixing: Complete the mixing of large batches of materials in a short time, significantly improve production efficiency, and reduce time costs.

Energy-saving design: Low-power motors and optimized stirring design effectively reduce energy consumption and operating costs.

2. Avoid production risks

Sealing design: Adopt air purification sealing technology to prevent fine powder from entering the bearing and extend the service life of the equipment.

Stable operation: The equipment has a solid structure, stable operation, reduced failure rate, and ensured production continuity.

3. Multifunctional application

Wide applicability: Suitable for mixing a variety of materials such as plastic particles, powders, masterbatches, additives, etc., to meet diversified production needs.

Easy to clean: Fully open design, convenient for users to clean and maintain, reducing downtime.

Detials

Application Scenarios

Horizontal plastic mixers are widely used in the following fields:

Plastic modification industry: used for uniform mixing of plastic particles and modifiers.

Plastic recycling industry: suitable for mixing recycled plastic particles and additives.

Injection molding: ensure uniform distribution of masterbatch and plastic particles to improve product quality.

Extrusion production: used for the preparation of PVC dry blends and premixes.

Blow molding production: meet the mixing needs of large batches of materials and improve production efficiency.

FAQ

1. What is the mixing time of the horizontal plastic mixer?

The mixing time is usually 5-15 minutes, and the specific time can be adjusted according to the material characteristics and production needs.

2. Does the equipment support customization?

Yes, we can provide customized services with different capacities, powers and configurations according to customer needs.

3. How to ensure the service life of the equipment?

The equipment adopts high-quality stainless steel material and air purification sealing technology, which can effectively prevent fine powder from entering the bearing and reduce wear. At the same time, regular maintenance and care can further extend the service life of the equipment.

4. Is the equipment easy to clean and maintain?

The horizontal plastic mixer adopts a fully open design, and the mixing barrel and stirring paddle are easy to disassemble and clean. It is recommended to carry out comprehensive maintenance once a quarter, including cleaning the mixing barrel, checking the seals and lubricating the bearings, to ensure long-term and stable operation of the equipment.
