Introduction to Oil Mold Temperature Machine
Oil Mold Temperature Machine is an efficient temperature control device designed for plastic processing, chemical, pharmaceutical, food and beverage, injection molding, die casting, rubber molding, composite molding and other industries. It transfers heat through thermal oil, has the characteristics of fast heating speed and high temperature uniformity, and can meet the precise temperature control needs of various molds. Whether it is precision injection molding, rubber machinery, or medical equipment temperature control, Oil Mold Temperature Machine can provide stable and reliable temperature control solutions.
Features of Oil Mold Temperature Machine
1. Intelligent function
PID temperature control: using advanced PID temperature control technology, the temperature difference error is controlled within ±1°C to ensure temperature stability, suitable for high-precision production needs.
LCD display: real-time display of measured temperature and set temperature, intuitive and convenient operation, easy for users to monitor and adjust.
Automatic protection system: equipped with multiple safety functions such as automatic exhaust during shutdown, automatic cooling, water pump overload protection, overheating protection and power supply reverse phase and phase loss protection to ensure safe and reliable operation of the equipment.
2. High-quality materials
Stainless steel liner: The interior is made of stainless steel, which is corrosion-resistant, high-pressure-resistant, and explosion-proof, extending the service life of the equipment.
High-efficiency pump: High-quality and high-efficiency pumps are used to meet the temperature control requirements of various molds to ensure uniform and efficient heat transfer.
3. Energy saving and environmental protection
Efficient heat conduction: The thermal oil has excellent thermal conductivity, fast heating speed, high thermal efficiency, and significantly reduces energy consumption.
Energy-saving design: Long constant temperature time, reducing energy waste, and meeting the requirements of modern industrial energy conservation and environmental protection.
Technical Parameter
| Model | M6KWY | M9KWY | M12KWY | M18KWY | M24KWY | M30KWY | M40KWY | M60KWY | M90KWY | M120KWY | |
| Temperature Range | 30-180℃ | ||||||||||
| Temperature ControlAccuracy | ±0.1℃ | ||||||||||
| Voltage | 3PH-380V-50Hz | ||||||||||
| Heat Transfer Media | Conduction Oil | ||||||||||
| Cooling method | Indirect cooling | ||||||||||
| Heating Capacity | kW | 6 | 9 | 12 | 18 | 24 | 30 | 40 | 60 | 90 | 120 |
| Pump Power | kW | 0.37 0.75 | 0.37 0.75 | 0.75 1.50 | 0.75 1.50 | 0.75 1.50 | 1.50 2.24 | 1.50 2.24 | 4.00 | 4.50 | 4.50 |
| Max Pump Flow | L/min | 4256 | 4256 | 56 110 | 56 110 | 56 110 | 110140 | 110140 | 367 | 400 | 400 |
| System Pressure | Kg/cm² | 2.8 3.8 | 2.8 3.8 | 3.8 6.0 | 3.8 6.0 | 3.8 6.0 | 6.0 8.5 | 6.0 8.5 | 4.0 | 5.2 | 5.2 |
| Cooling Water Pipe | Inch | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 1 | 1 | 1 | 1 | 1 |
| Circulation Water Pipe | Inch | 3/4X2 | 3/4X2 | 3/4X4 | 3/4X4 | 3/4 | 1 | 1 | 1 | 1 | 1 |
| Dimensions | L(mm) | 715 | 715 | 715 | 715 | 895 | 895 | 1010 | 1010 | 1500 | 1500 |
| W(mm) | 340 | 340 | 340 | 340 | 400 | 400 | 540 | 540 | 840 | 840 | |
| H(mm) | 650 | 650 | 650 | 650 | 710 | 710 | 670 | 670 | 1500 | 1500 | |
| Weight | Kg | 65 | 90 | 105 | 138 | 168 | 198 | 218 | 288 | 658 | 688 |
advantages of Oil Mold Temperature Machine
1. Reduce operating costs
Efficient energy saving: Through precise temperature control and efficient heat conduction, energy consumption is reduced and long-term operating costs are reduced.
Reduce maintenance costs: High-quality materials and intelligent design reduce equipment failure rate and maintenance and repair costs.
2. Improve production efficiency
Fast heating: The fast heat transfer characteristics of thermal oil significantly shorten the heating time and improve production efficiency.
High temperature uniformity: Ensure that the temperature of each part of the mold is consistent, reduce product defects, and improve product quality.
3. Avoid risks
Multiple safety protections: Automatic exhaust, cooling, overload protection and other functions effectively avoid risks such as equipment overheating and overload, and ensure production safety.
Stable and reliable: Stainless steel material and high-efficiency pump design ensure stable operation of the equipment under high pressure and high temperature environment, reducing the risk of production interruption.

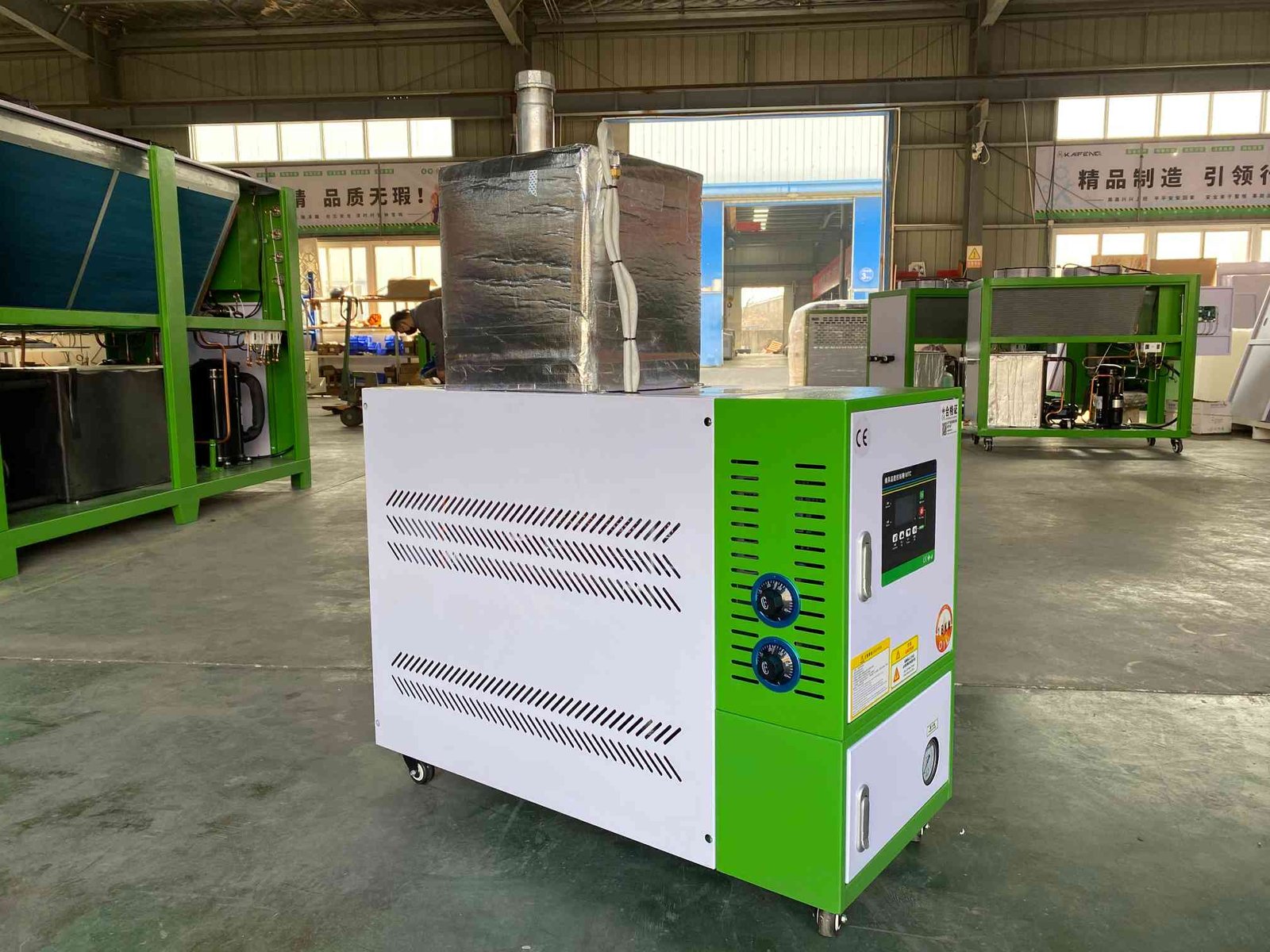

Detials
Application Scenarios
Precision injection molding temperature control: ensure the dimensional accuracy and surface quality of injection molded products.
Rubber machinery temperature control: improve the molding efficiency and quality of rubber products.
Plastic machinery temperature control: suitable for production temperature control of various plastic products.
Roller temperature control: used for roller temperature control in printing, packaging and other industries.
Reactor temperature control: meet the precise temperature control needs of reactors in the chemical and pharmaceutical industries.
Medical equipment temperature control: ensure temperature stability during the pharmaceutical production process.
FAQ
1. What is the heating speed of Oil Mold Temperature Machine?
The Oil Mold Temperature Machine uses thermal oil to transfer heat, which has a fast heating speed and can significantly shorten the production cycle.
2. What is the temperature control accuracy of the equipment?
Using PID temperature control technology, the temperature control accuracy can reach ±1°C, which is suitable for high-precision production needs.
3. Does the equipment support automated operation?
Yes, the equipment is equipped with an LCD display and an automatic protection system, which supports automated operation and monitoring.
4. Is the maintenance cost of the equipment high?
The equipment uses high-quality materials and intelligent design, with a low failure rate and low maintenance cost.
5. Is it suitable for high-pressure environments?
Yes, the interior of the equipment is made of stainless steel, which is resistant to high pressure and explosion-proof, and is suitable for use in high-pressure environments.
